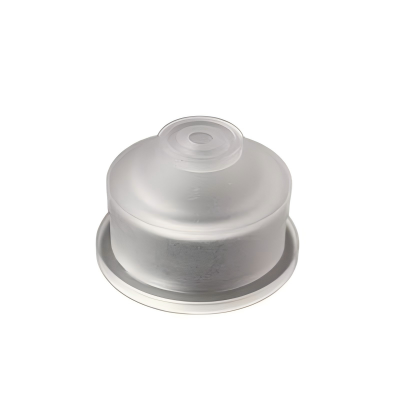

Precision Water Nozzles for Stable Wire EDM Performance

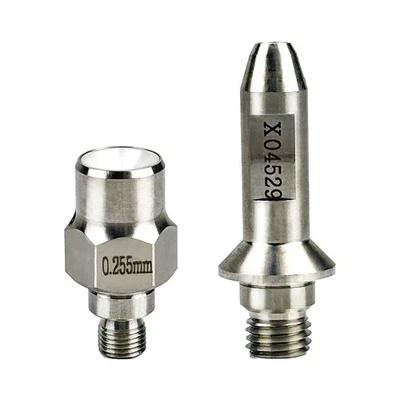

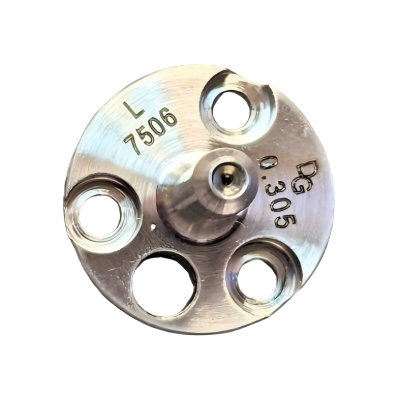

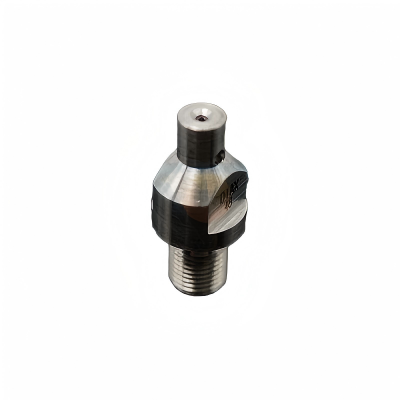

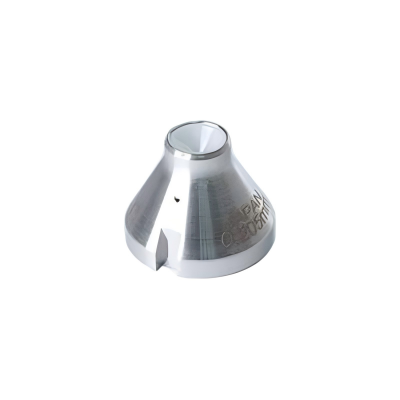

♦ Wire Guide is a critical precision component in slow-speed Wire EDM machines, responsible for accurately positioning and guiding the electrode wire during the cutting process. Its machining accuracy, wear resistance, and surface quality directly influence wire stability, cutting precision, and overall machining performance.
♦ Manufactured by our own factory and precisely matched with our Wire EDM machines, our Wire Guides are produced with high-precision processing technology and strict quality control to ensure consistent wire positioning, smooth wire movement, and reliable long-term operation.
♦ Using high-quality materials and optimized structural design, our Wire Guides help maintain stable spark conditions, reduce wire vibration, and improve machining accuracy for various precision cutting applications.
Key Features

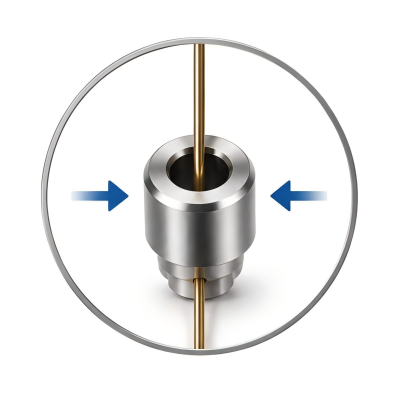

Designed with precision machining technology, the Wire Guide maintains accurate wire alignment and minimizes wire deviation during high-speed wire movement, helping achieve stable cutting accuracy.

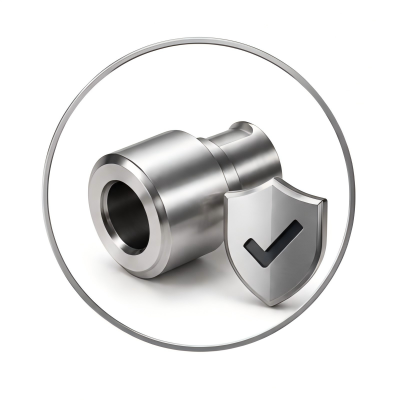

Manufactured from high-quality wear-resistant materials, the Wire Guide withstands continuous wire friction and EDM working conditions for extended service life.

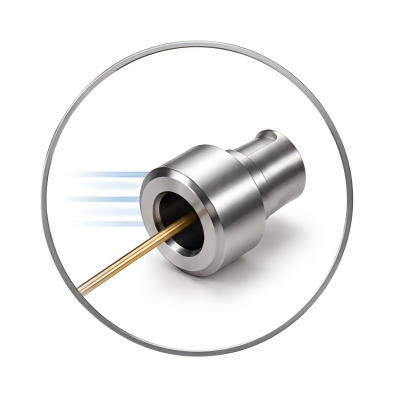

The optimized wire guiding structure ensures smooth wire running and consistent discharge conditions, supporting reliable EDM machining performance.

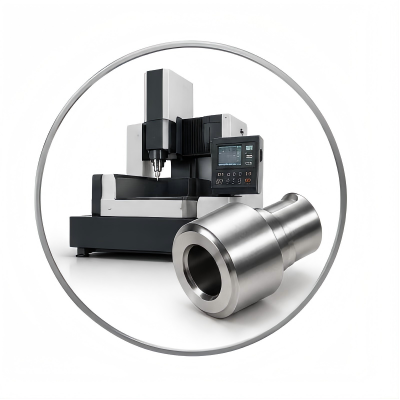

Produced according to our Wire EDM machine specifications, each Wire Guide is precisely matched with the machine system for reliable installation and performance.
- Common Specifications
| Item | Specification |
|---|---|
| Product Name | Wire Guide |
| Application | Slow-Speed Wire EDM Machine |
| Compatible Machine Type | Wire Cut EDM / CNC Wire EDM |
| Material | High-strength Wear-resistant Material |
| Guide Hole Diameter Range | Approx. Φ0.10 – Φ0.30 mm |
| Machining Accuracy | High Precision Processing |
| Surface Treatment | Precision Polishing / Wear-resistant Treatment |
| Operating Environment | EDM Dielectric Water Environment |
| Compatibility | Factory-Matched EDM Machines |
| Service Life | Depends on machining conditions and wire type |
| Available Types | Upper / Lower Wire Guide |
Related Product
Frequently Asked Questions
The Wire Guide accurately positions and supports the electrode wire during cutting. It helps maintain wire stability, improve machining accuracy, and ensure consistent EDM performance.
Replacement frequency depends on machining conditions, cutting hours, wire type, and material being processed. It is recommended to replace the Wire Guide when accuracy decreases or visible wear appears.
Common signs include increased wire vibration, unstable cutting performance, frequent wire breakage, reduced surface quality, or visible damage around the guide hole.
Our Wire Guides are mainly designed and factory-matched for our own Wire EDM machines. Compatibility with other machines depends on the machine model and guide specifications.
Regular cleaning, maintaining proper flushing conditions, using suitable EDM parameters, and replacing worn components in time can help extend Wire Guide service life and maintain machining stability.
