Wire Cutting Fixture
Product Description:
-
We focus on research and development and production of high-precision fixtures. Guided by precision manufacturing needs, we offer product R&D and custom solutions for precise adaptation to diverse scenarios.
-
Equipped with industry-leading facilities—nano-precision grinders, advanced EDM machines, multi-axis machining centers, and Zeiss coordinate measuring machines—we guarantee superior product processing and measurement accuracy.
We specialize in high-quality fixture manufacturing:
- Quick-change ER collet chucks: Fast tool changes, higher efficiency.
- Mechanical supercharged vises: Strong clamping for stable workholding.
- Wire-EDM fixtures: Precise positioning for intricate cutting.
Sepcification
- VBE-TA-100
- VBE-MI-100
- VBE-SRV-100
| Project Content | Technical Parameters |

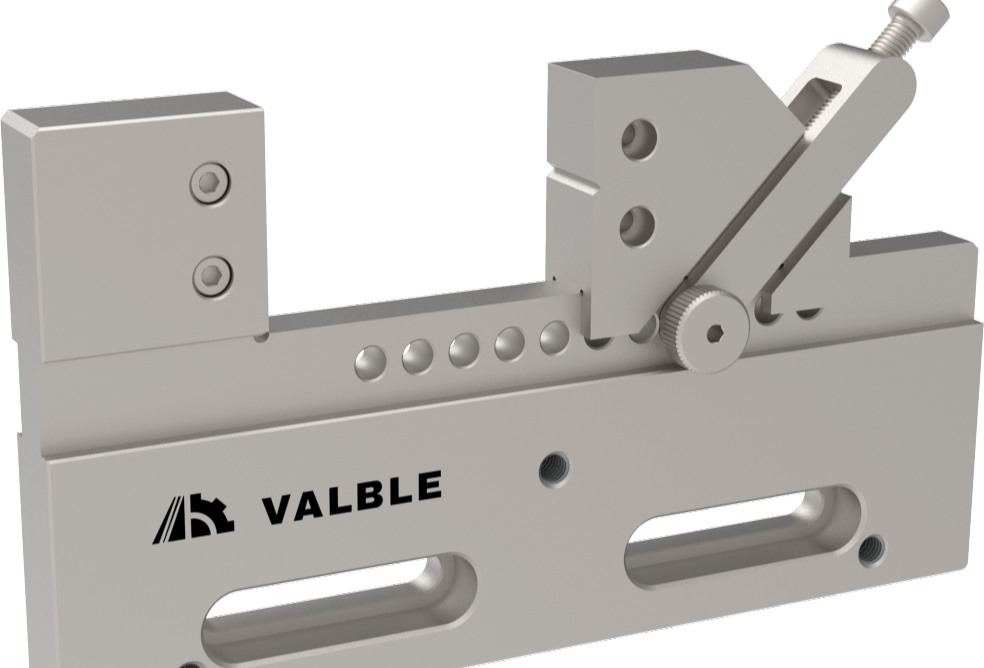

| Specifications | VBE-TA-100 |
| Coating | Coating |
| Transport Package | Standard Import Package |
| Origin | China |
| Specification | 100*120*60 |
| Material | hardening stainless steel |
| Package Size | 100.00cm * 120.00cm * 60.00cm |
| Package Gross Weight | 30.000kg |
| Weight | 4.0KG |
| Pickling range | 0-110 |
| Maximum torque | 16N.M |
| Maximum holding force | 4KN |
| Features | lt has horizontal and vertical clamping forces to prevent the workpiece from warping. Installation Method: M10 bolt tightness |
| Project Content | Technical Parameters |

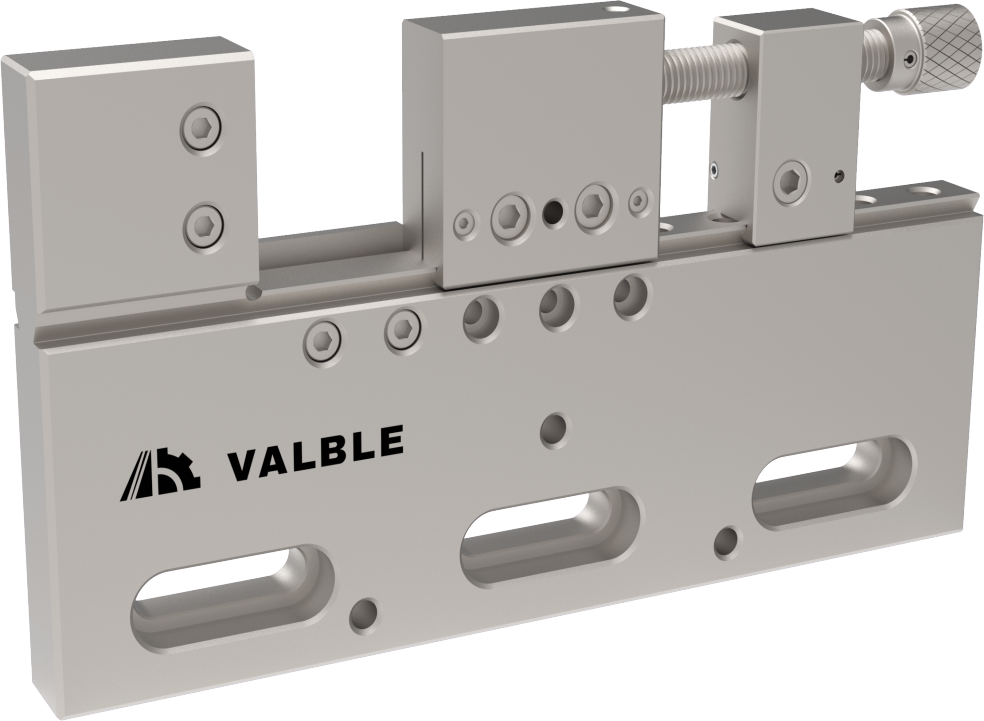

| Specifications | VBE-MI-100 |
| Coating | Coating |
| Transport Package | Standard Import Package |
| Origin | China |
| Specification | 100*120*60 |
| Material | hardening stainless steel |
| Package Size | 100.00cm * 120.00cm * 60.00cm |
| Package Gross Weight | 30.000kg |
| Weight | 4.0KG |
| Pickling range | 0-100 |
| Maximum torque | 20N.M |
| Maximum holding force | 5KN |
| Features | Suitable for rectangular workpieces, large clamping forcerepeated clamping stability. Installation Method: M10 bolt tightness |
| Project Content | Technical Parameters |

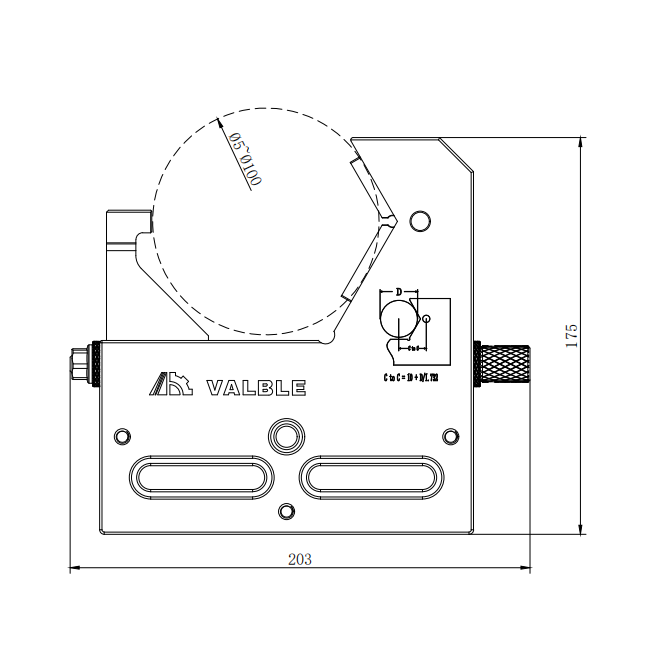

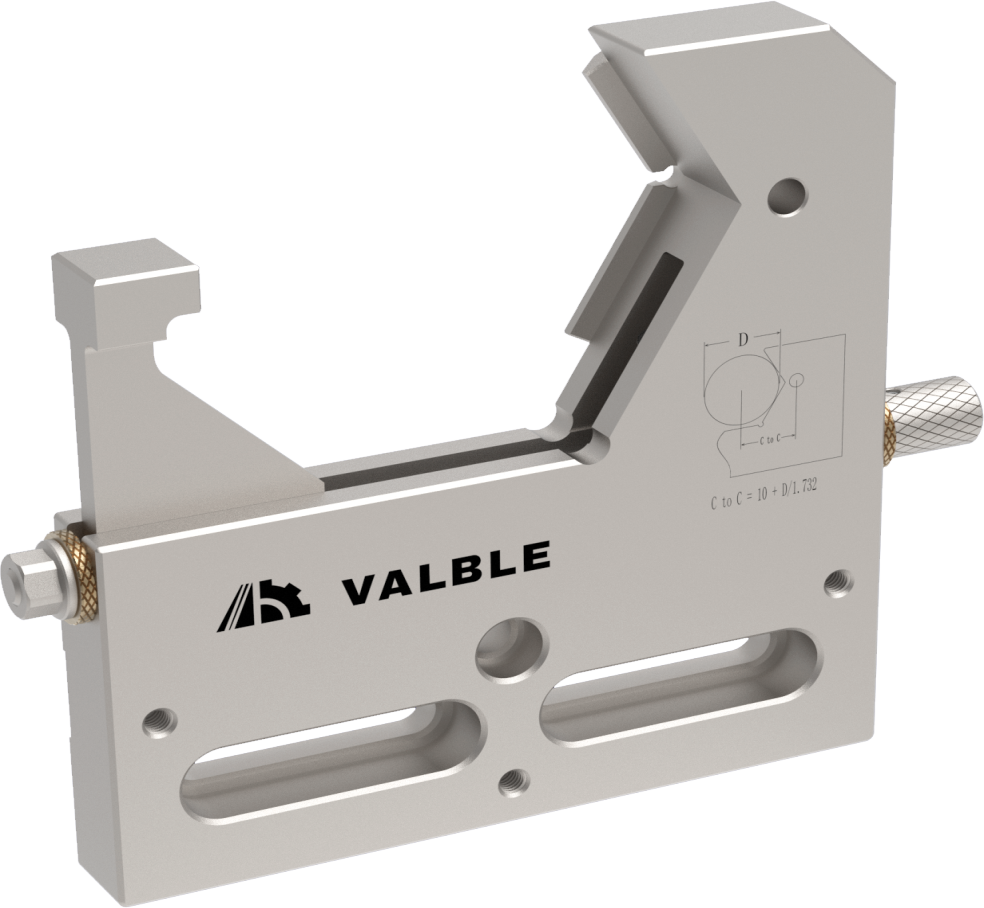

| Specifications | VBE-SRV-100 |
| Coating | Coating |
| Transport Package | Standard Import Package |
| Origin | China |
| Specification | 100*120*60 |
| Material | hardening stainless steel |
| Package Size | 100.00cm * 120.00cm * 60.00cm |
| Package Gross Weight | 30.000kg |
| Weight | 2.7KG |
| Pickling range | φ5-φ100 |
| Maximum torque | 12N.M |
| Maximum holding force | 2.5KN |
| Features | Suitable for round workpieces, quick positioning of the center of the circle. Installation Method: M10 bolt tightness |
