Semi-automatic Drilling EDM Machine
China’s semi-automatic super drill EDM machine and electrical discharge machining manufacturer, providing customers with high-end EDM machine tools featuring rapid cutting speeds.
EDM deep hole drilling is suitable for machining deep and small holes between Φ0.15mm-3mm in diameter on various conductive materials such as stainless steel, hardened steel, copper, aluminum, and cemented carbide.
The semi-automatic small hole drilling EDM machine balances cost, precision and efficiency, making it suitable for the machining of small, deep and angled holes in small to medium batches. Drilling EDM machine efficiently processes high-hardness materials and complex hole positions that are difficult to achieve with conventional drill bits, enabling enterprises to control costs while ensuring product quality.

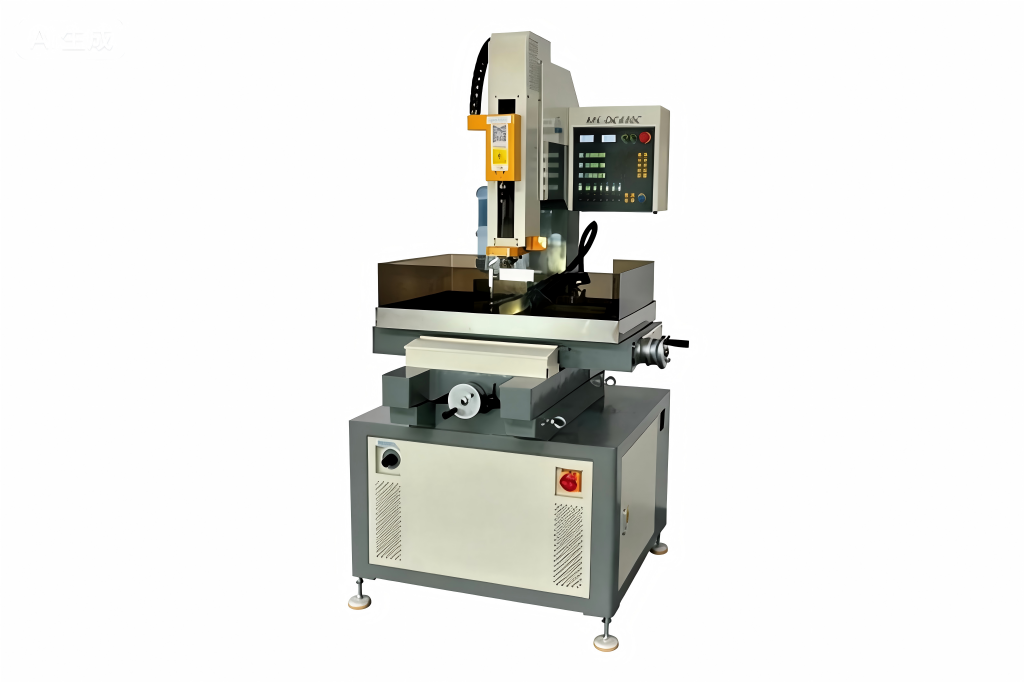

High Precision Semi-automatic Drilling EDM Machine
- Significant cost advantage: Super drilling edm machine acquisition and maintenance costs are lower than fully automated models. Tap water can be used as the working fluid, resulting in low operating costs, making it suitable for small and medium-sized enterprises with limited budgets.
- Flexible processing of complex holes: Capable of machining inclined holes, curved holes penetrating surfaces, and intersecting holes without requiring complex tooling. This hole drilling EDM is suitable for scenarios such as mould threading holes and engine cooling holes.
Super drill EDM can erode drills and taps broken in the workpiece without damaging the original hole or thread.
Super drill edm machine parts: Spindle lifting and secondary lifting adopt Taiwan linear guide and ball screw, which better ensure the machining precision.
EDM small hole drilling machine’s Z axis travel is 380mm, up to 500mm-long electrode can be clamped, which reduces the electrode consumption to the minimum (about 100mm).
EDM fast hole drilling machine has super low consumption circuits, the electrode is used at extremely high efficiency.
EDM hole drilling machine’s Z-axis uses subdivision drive stepper motor (hybrid servo motor), making high speed movement possible, the whole travel only takes 10 seconds, greatly reducing waiting time and improving efficiency.
Small hole EDM drilling machine’s head is electrically driven.

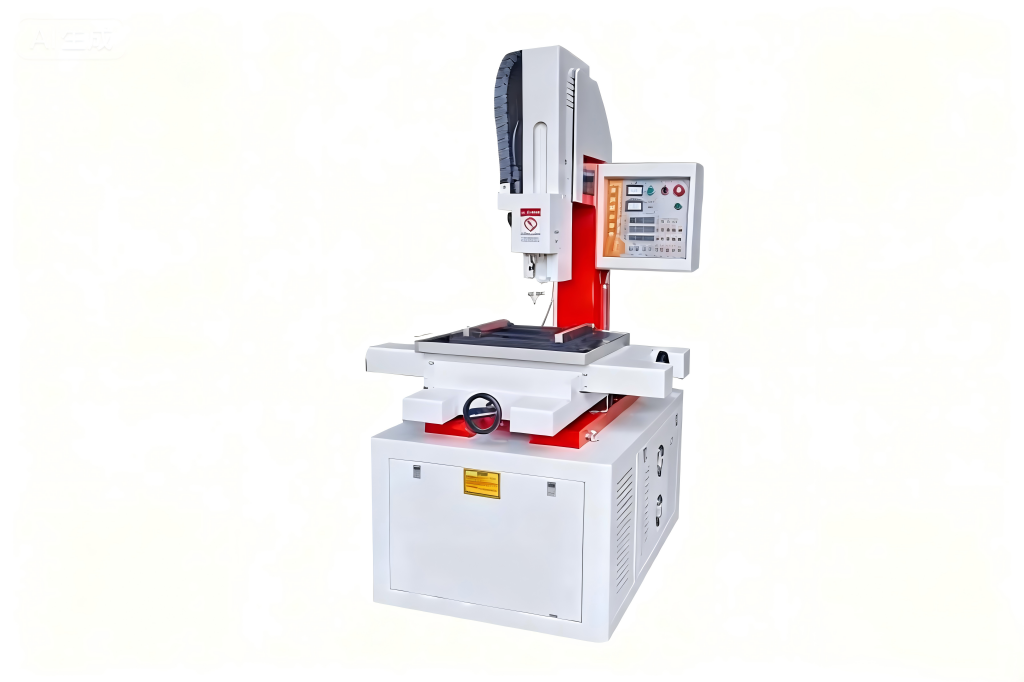

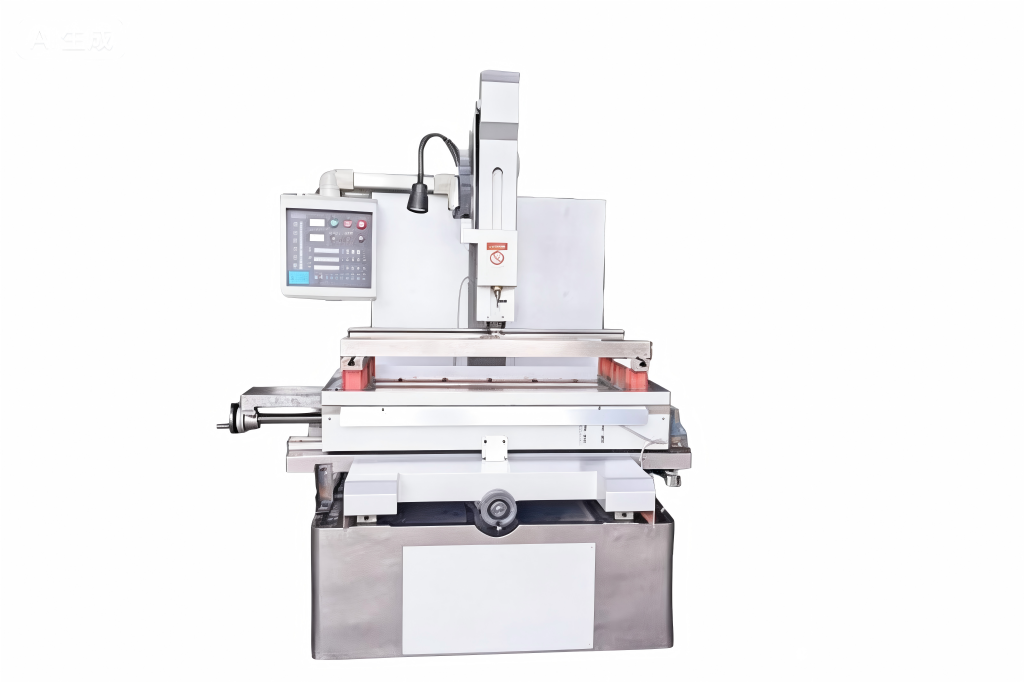

Large Semi-automatic Drilling EDM Machine
- EDM hole drilling machine has human-machine collaboration with user-friendly operation: manual positioning combined with one-touch automated machining reduces operator skill requirements.
- Super drilling EDM machine equipped with a parameter memory module, multi-hole machining can be rapidly recalled to enhance efficiency.
Small hole EDM drilling machine can be directly penetrated into the machining from the irregular shape surface such as inclined plane and curved surface.
Hole drilling EDM’s main shaft lifting using subdivision stepper motor drive, to achieve fast lifting, head travel electric control.
Drilling EDM machine’s maximum stroke of Z-axis is 400mm, 500mm long electrode can be clamped at one time, and the waste of electrode tube is low.
The main shaft lifting and secondary lifting are using Taiwan linear guide rail and ball screw, better ensure the processing accuracy.
Small hole EDM drilling machine is suitable for Φ0.1(or above) electrode tube drilling, super thick workpiece within 250mm.
Super drill edm machine’s innovated design of integrated swivel head with tungsten steel wear plate and multi-layer waterproof structure.
