Automatic Clamping & Positioning System (Wire EDM Fixtures)
CNC fixture clamps are components and clamping devices used within the working area of wire-cutting machines to position and support workpieces during electrical discharge wire-cutting processes. The fixture tools are employed to securely clamp workpieces of varying dimensions, shapes, and thicknesses while minimising the risk of collisioon
The clamp fixture are extensively utilised across automotive, aerospace, electronics, machining, telecommunications, and medical industries. To enhance product precision and ensure quality, the company employs internationally advanced production equipment for core component machining, with Zeiss coordinate measuring machines conducting final inspection prior to shipment. This approach delivers precise and reliable clamping solutions for precision machining.
There are three types of our fixture store:
- Electrode Correction Head : it serves as a crucial auxiliary fixture jig for enhancing the consistency and precision of electrical discharge wire cutting processes.

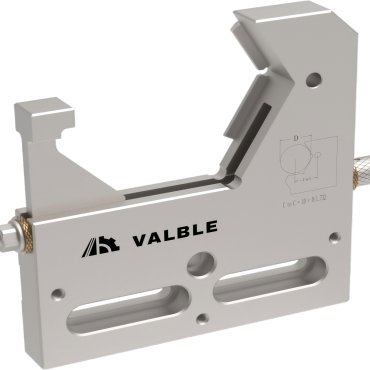

- Wire Cutting Fixture : wire-cutting fixture tool should be scientifically selected based on the workpiece geometry, machining precision requirements, and production scale.

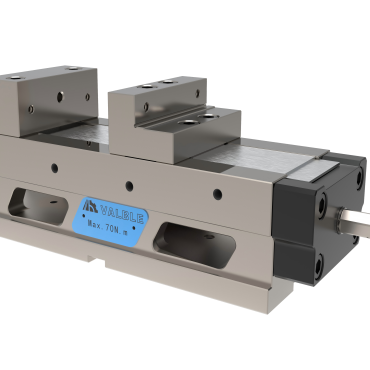

- Vice : Vice tool compatible with various wire-cutting EDM machines, particularly suited for clamping small to medium-sized precision workpieces.
Advantages of Wire EDM Fixture Tool
The tool and fixture enhance the machining efficiency of precision wire cutting and the quality of machined components, whilst reducing the associated jig fixture clamp costs.
This specialised hold down fixture clamps is straightforward to manufacture, simple to clamp and adjust, highly practical, inexpensive to produce, and offers high clamping precision.
Professional precision fixtures for wire cutting machines, realize fast clamping, high-precision positioning and stable processing, suitable for various workpiece types, improve your machining efficiency and accuracy effectively.
