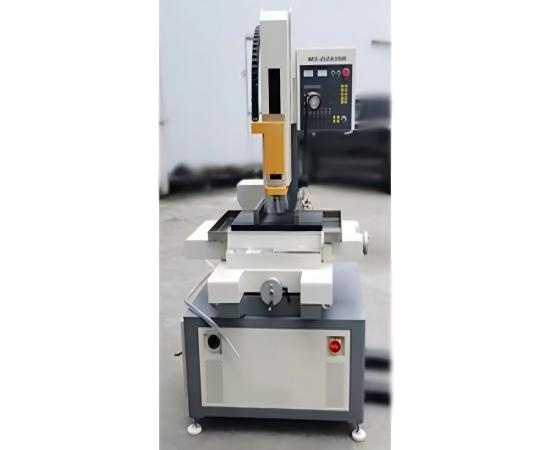

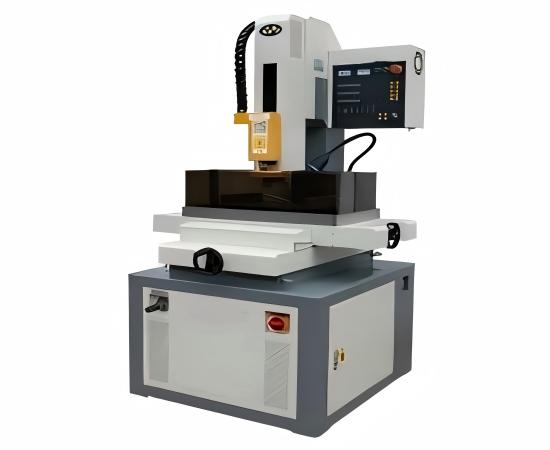

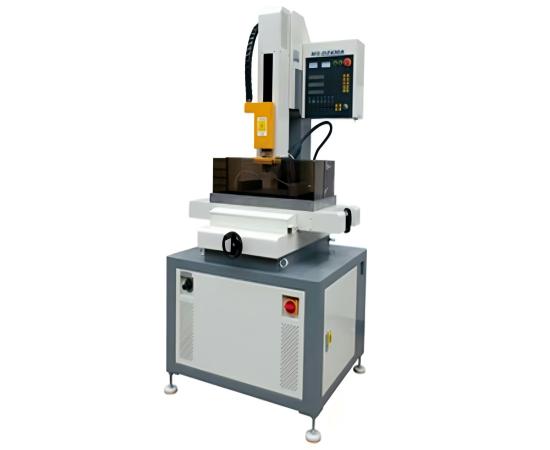

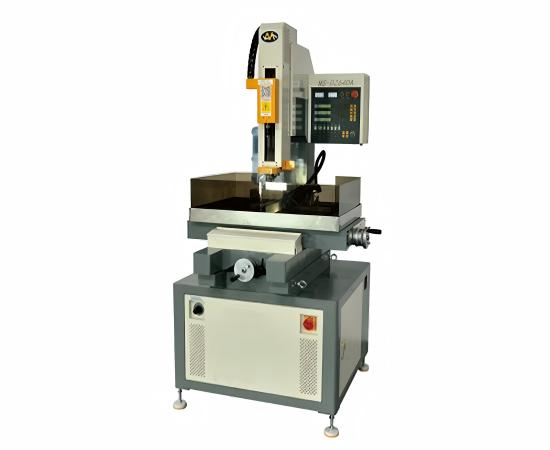

MS-DZ430 Drilling EDM Machine
1. Z axis travel is 380mm,which reduces the electrode consumption to the minimum.
2. Z-axis uses subdivision drive stepper motor（hybrid servo motor）, making high speed movement possible.
3. The machine head is electrically driven.
4. Innovated design of integrated swivel head with tungsten steel wear plate and multi-layer waterproof structure.
5. Self developed operation system: one-click machining、depth-setting function、center setting function、surface setting function.
6. It is suitable for Φ0.1(or above) electrode tube drilling, super thick workpiece within 250mm.
Sepcification
- MS-DZ430 Drilling EDM
| Project Content | Technical Parameters |
| Specifications | MS-DZ430 |
| Electrode diameter（mm） | Φ0.1-Φ3.0 |
| Machine head travel（mm） | 250 |
| Spindle servo travel（mm） | 380 |
| Max.speed of spindle（mm/min） | 1500 |
| Swivel head(C-axis) rotation speed（rpm） | 0-200 adjustable |
| Worktable size（mm） | 440*320 |
| X*Y travel（mm） | 400*300 |
| Machining speed（mm/min） | 300 |
| Max.working current（A） | 30 |
| Max.input power（KW） | 4 |
| Power supply（V/HZ） | 380/50 |
| Digital display | 3-axis |
| Working liquid supply device | Pneumatic pump + electrical pump |
| Max.working liquid pressure（Mpa） | 12 |
| Max. worktable load（kg） | 300 |
| Overall dimension of machine（W*L*H） | 1000*1000*2000 |
| Machine weight（kg） | 700 |
|
X、Y、Z configurations |
X,Y,Z axis precision ball screw |
| X,Y,Z axis linear guideway | |
| Z axis stepper motor subdivision drive |
