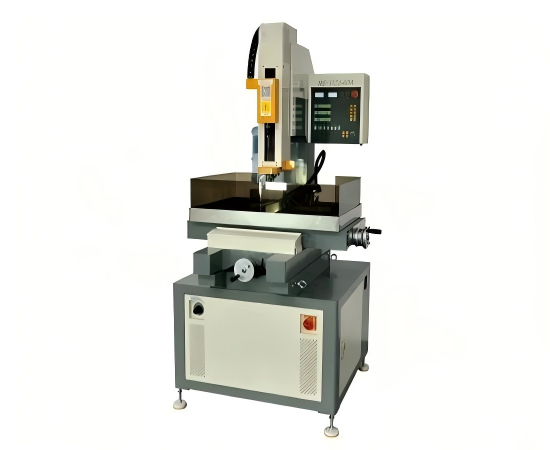

High Speed Semi-automatic Drilling Machine
The main shaft lifting and secondary lifting are using Taiwan linear guide rail and ball screw, better ensure the processing accuracy.The rotating head of the motor adopts tungsten steel wear-resistant plate and multiple waterproof structure to ensure the rotating concentricity of the chuck.
Digital high frequency: PWM special pulse outlet.High frequency soft start function, machining surface without burrs.
Fixed depth function: the use of encoding disk count, a, b phase orthogonal decoding, strong anti-interference ability, more accurate depth.
Limit function: Meet the lower limit automatically rises to the top, if the copper tube is replaced halfway, it can also rise directly to the top.
The main shaft lifting using subdivision stepper motor drive, to achieve fast lifting, head travel electric control.
Sepcification
- DZ703
- DZ703-6345/8055/10063
| Project Content | Parameter Description |
| Machine Specifications | DZ703 |
| Worktable size | 440×320 mm |
| X/Y travel | 400×300 mm |
| Z axis travel | 400mm |
| Spindle travel | 360mm |
| Max spindle adjustment speed | 200mm/min |
| Rotating head R axis speed | 20-120rpm |
| Max load weight | 200kg |
| Distance between guide and worktable | 400mm |
| Machine dimensions | 1200×900×1900mm |
| Diameter of electrode | Ø0.3 – Ø3.0(optional Ø0.15 – Ø3.0 or Ø0.3 – Ø6.0) |
| Machine weight | 450kg |
| Working fluid | Distilled water /tap water |
| Processing depth | 0-385mm |
| Max depth and diameter ratio | 300：1 |
| Max processing speed | 30-60mm/min |
| Max processing current | 30A |
| Max power consumption | 3.6KVA |
| Working pressure | 8Mpa |
| Power supply | 380V/50HZ |
| X/Y axis display mode | Grating digital display |
| Z-axis control | Stepping motor |
| Secondary travel control method | AC motor |
| Digital display | Three-axis |
| XY axis digital display resolution | 0.005mm |
| Filtrering method | Interchangeable gap type |
| Water Pump | Special plunger pump |
| Motor rotating head | Tungsten steel |
| Worktable | Level 0 Marble |
| Transformer | 3.6KW |
| Resistance | 300W Super Non-Inductive Type |
| Project Content | Parameter Description | ||
| Specifications | DZ703-6345 | DZ703-8055 | DZ703-10063 |
| Machine dimensions (mm) | 1700/1600/2150 | 2400/1800/2150 | 2400/2400/2150 |
| X/Y worktable size (mm) | 540/1000 | 594/1064 | 700/1270 |
| X/Y travel (mm) | 450/630 | 550/800 | 630/1000 |
| Z axis travel (mm) | 400 | 400 | 400 |
| W-axis secondary travel(mm) | 360 | 360 | 360 |
| Max load weight(kg) | 500 | 1000 | 1300 |
| Machine weight (kg) | 1500 | 2100 | 2900 |
| Max spindle adjustment speed | 200mm/min | ||
| Rotating head R axis speed | 20-120rpm | ||
| Distance between guide and worktable | 400mm | ||
| Diameter of electrode | Ø0.3 – Ø3.0(optional Ø0.15 – Ø3.0 or Ø0.3 – Ø6.0) | ||
| Working fluid | Distilled water /tap water | ||
| Processing depth | 0-385mm | ||
| Max depth and diameter ratio | 300:1 | ||
| Max processing speed | 30-60 mm/min | ||
| Max processing current | 30 A | ||
| Max power consumption | 3.6KVA | ||
| Working pressure | 8Mpa | ||
| Power supply | 380V/ 50Hｚ | ||
| X/Y axis display mode | Grating digital display | ||
| Z-axis control | Stepping motor | ||
| Secondary travel control method | AC motor | ||
| Digital display | Three-axis | ||
| XY axis digital display resolution | 0.005mm | ||
| Filtering method | Interchangeable gap type | ||
| Water Pump | Special plunger pump | ||
| Motor rotating head | Tungsten steel | ||
| Worktable | Level 0 Marble | ||
| Transformer | 3.6KW | ||
| Resistance | 300W Super Non-Inductive Type | ||
