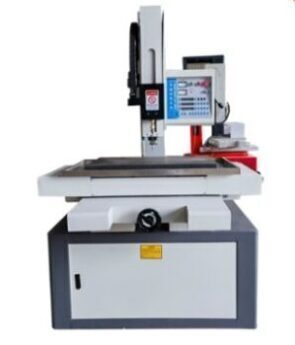

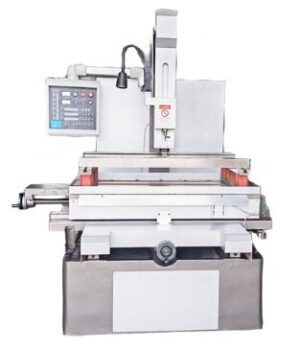

High Speed CNC Drilling Machine
- Ball screw: X/Y/Z Taiwan precision ball screw.
- Linear guide: Taiwan linear guide.
- Bed structure: The pallet and column are made of HT200 castings.
- Worktable: 0 level high-precision marble.
- Three-axis CNC system: adopts encoder/player architecture, CNC encoder realizes the management of CNC process database files, CAD. G code and other engineering files.
- With intelligent tool lifting function: set the workpiece thickness, workpiece punching, one-key processing end, automatically lift to the surface of the workpiece.
Sepcification
- CNC450
- CNC630/CNC800/CNC1000
| Project Content | Technical Parameters |
| Specifications | CNC450 |
| X/Y worktable size | 380/500 mm |
| X/Y/Z travel | 350/450/450 mm |
| Machine dimensions | 1250/1400/2100 mm |
| Spindle servo travel | 360 mm |
| Max load weight | 300 kg |
| Diameter of electrode | Ø0.15-Ø3.0 mm |
| Max processing current | 30 A |
| Working voltage | 110V |
| Power supply | 380VAC±5﹪ 50HZ |
| Pulse Width | 0-9 levels adjustable (us) |
| Pulse interval continuously adjustable | 1:1-1:8 (pulse width: pulse interval) |
| Machine power | 3.6 (KVA) |
| Max piercing speed | 30-60 mm/min (depending on the material) |
| Max piercing thickness | 400mm |
| Positioning accuracy | ≤ ±0.02mm (100mm) |
| Min movement of worktable | 0.001 mm |
| Working fluid | Purified water |
| Filtering method | Shallow gap |
| Water tank volume | 25L |
| Machine weight | 500 kg |
| Three-axis control method | CNC |
| Three-axis drive method | Subdividing hybrid motors/AC servo motor(optional) |
| XYZ three-axis screw | Precision Ball Screw |
| XYZ three-axis guide | Linear Guide |
| Screw guide lubrication | Centralized oil supply |
| Control system | Shanghai Jiao Tong University |
| Handheld unit | Hand control box |
| Operational Controls | 17 inch LCD screen, mouse and keyboard |
| Digital display | Three-axis |
| Power supply method | Spindle carbon brush power supply |
| Project Content | Parameter Description | ||
| Specifications | CNC630 | CNC800 | CNC1000 |
| Machine dimensions (mm) | 1700/1600/2150 | 2400/1800/2150 | 2400/2400/2150 |
| X/Y worktable size (mm) | 540/1000 | 594/1064 | 700/1270 |
| X/Y travel (mm) | 450/630 | 550/800 | 630/1000 |
| Z axis travel (mm) | 400 | 400 | 400 |
| Spindle servo travel(mm) | 360 | 360 | 360 |
| Max load weight(kg) | 500 | 1000 | 1300 |
| Machine weight (kg) | 1500 | 2100 | 2900 |
| Diameter of electrode | Ø0.15-Ø3.0 mm | ||
| Max processing current | 30 A | ||
| Working voltage | 110V | ||
| Power supply | 380VAC±5﹪ 50Hｚ | ||
| Pulse Width | 0-9 levels adjustable (us) | ||
| Pulse interval continuously adjustable | 1:1-1:8 (pulse width: pulse interval) | ||
| Machine power | 3.6(KVA) | ||
| Max piercing speed | 30-60 mm/min (depending on the material) | ||
| Max piercing thickness | 400 mm | ||
| Positioning accuracy | ≤ ±0.02 mm (100 mm) | ||
| Min movement of worktable | 0.001 mm | ||
| Working fluid | Purified water | ||
| Filtrering method | Shallow gap | ||
| Three-axis control method | CNC | ||
| Three-axis drive method | Subdividing hybrid motors/AC servo motor(optional) | ||
| XYZ three-axis ball screw | Precision Ball Screw | ||
| XYZ three-axis guide | Linear Guide | ||
| Screw guide lubrication | Centralized oil supply | ||
| Control system | Shanghai Jiao Tong University | ||
| Handheld unit | Hand control box | ||
| Operational Controls | 17 inch LCD screen, mouse and keyboard | ||
| Digital display | Three-axis | ||
| Power supply method | Spindle carbon brush power supply | ||
High-Efficiency CNC Drilling Machine
MS-DC430 Drillig EDM Machine
- Hole drilling EDM‘s Z axis travel is 380mm, up to 500mm-long electrode can be clamped, which reduces the electrode consumption to the minimum (about 100mm).XYZ three-axis precision ball screw, Taiwan HIWIN linear guideway.
- It excels in precision processing of aerospace components, mold parts and precision tool.Support X.Y.Z three-axis CNC machining, suitable for flat and arc surface drilling.
- This EDM small hole drilling machine has super low consumption circuits, the electrode is used at extremely high efficiency.
MS-DC435 Drillig EDM Machine
- Small hole edm drilling machine‘s automatic penetration detection, and depth coordinates can also be set manually.
- It keeps stable performance on conductive materials like stainless steel, hardened steel, copper, aluminum and cemented carbide
- Super drill edm machine has power foffer memory function, automatic stop function at the end of processing and automatic pause control during machining.
MS-DC640 Drillig EDM Machine
- Electronica EDM drilling machine has automatic centering, automatic edge finding, and automatic finding of the surface of the workpiece.
- It has expert database, polarity reversal, digital sampling, adaptive servo tracking, penetrating, flexible machining, high speed machining, surface protection, automatic returning to workpiece surface at the end of machining.
- The super drill EDM machine‘s system uses a touch screen industrial computer, fast running speed, and can process massive amounts of data at the same time.
